1. Alternator Issues

Solution:

Option 1: Measuring directly at the alternator

1. Connect the probes:
   • Positive (red probe): Attach it to the B+ terminal on the alternator. This is the output terminal where the alternator delivers power.
   • Negative (black probe): Attach it to the engine block or another solid, grounded metal surface on the engine. The engine block serves as the ground connection (negative) since it is linked to the battery’s negative terminal.
2. Assess the voltage:
   • When the engine is running, the voltage at the B+ terminal should typically range between 13.8V and 14.4V for a 12V system, depending on load and battery condition.
   • If the voltage is below 13.8V, the issue could be with the alternator, voltage regulator, or belt tension.
   • If the voltage is above 14.4V, the regulator may be faulty, leading to overcharging and potential battery damage.

Option 2: Measuring at the battery terminals

1. Connect the probes:
   • Black probe to the battery’s negative terminal.
   • Red probe to the battery’s positive terminal.
2. Assess the voltage:
   • With the engine off: Voltage should be around 12.6V-12.8V (fully charged battery).
   • With the engine running (around 2000 RPM): Voltage should rise to 13.8V – 14.4V.

What to do if voltage readings indicate an issue?

• If the voltage is too low or too high, have the alternator checked by a qualified marine electrician.
• Alternators are generally easy to remove from the engine and can be tested at a workshop.
• Loose or worn belts should be checked and tightened or replaced if necessary.

2. Corrosion on Electrical Connections

Saltwater and moisture can lead to corrosion of cables and connectors, resulting in poor contact and malfunctions. If connections are not completely clean or if they are loose, resistance will increase, gradually reducing the electrical current.

Solution:

• Clean connections and plugs with a damp and dry cloth until the surface is completely shiny (ensure the power is off!).
• Use marine-grade cables and connectors that are resistant to corrosion.
• Apply a waterproof sealant (e.g., heat shrink tubing with adhesive) on all electrical connections.
• Inspect annually and clean connections regularly, using anti-corrosion spray.

Tips on the go:

• Keep a small brush, WD-40, or corrosion protection spray in your toolkit.
• Carry extra cable lugs and heat shrink tubing for quick repairs.

3. Insufficient Battery Capacity and Rapid Voltage Drop

Solution:

1. Check the Battery’s Resting Voltage:

• Use a multimeter to measure the voltage at the battery terminals when fully charged and left unused for at least 6 hours.
• A healthy AGM/lead-acid 12V battery should read between 12.6V and 12.8V. If the voltage is lower, the battery may be damaged.

2. Test Under Load:

• Connect an electrical device (e.g., a light or a pump) and measure the voltage while the battery is in use.
• If the voltage drops drastically (e.g., below 11V on a 12V battery), the battery cannot hold a charge and likely needs replacement.

3. Check the Charging Process:

• Use a battery charger and ensure that charging is working properly.
• If the battery fails to reach full voltage (12.6V+), there may be an issue with either the battery or the charger.

4. Attempt Battery Recovery:

• If the battery has been deeply discharged, try slowly recharging it over an extended period using an intelligent charger with a reconditioning function. This may help restore some capacity.
• If the battery still loses voltage quickly, replacement is recommended.

5. Calculate Power Demand:

• Determine how much power your electrical systems require and compare it to the battery’s capacity (Ah).
• Consider upgrading to a larger battery or switching to a LiFePO4 lithium battery, which can withstand deeper discharges and has a longer lifespan.

4. Shore Power and RCD Device Issues

Solution:

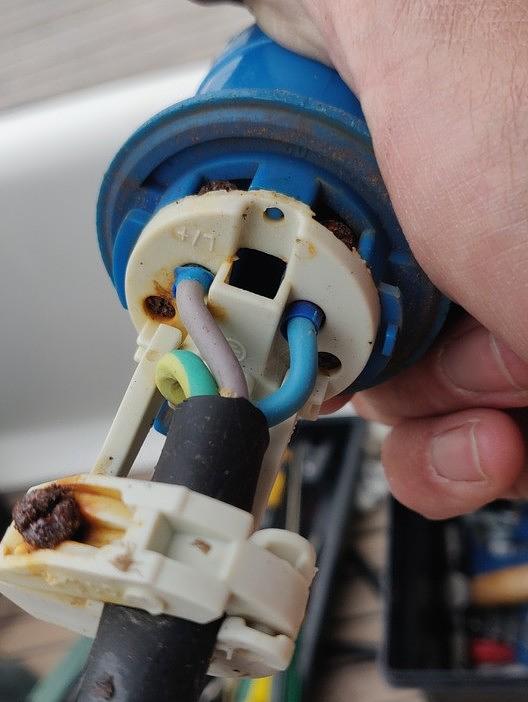

Check the Shore Power Cable:

• Inspect the plugs and connections for damage, corrosion, or loose wires. Clean and tighten any loose connections.
• Use a voltage tester to check whether the cable is wired correctly and that the phase connections are in order.

Test the Ground Connection:

• Use a multimeter to measure the resistance between the ground wire on the boat and the shore power source.
• The resistance should be low to ensure proper continuity. If there is no continuity, the ground connection must be repaired or replaced.

Install a Galvanic Isolator:

• A galvanic isolator prevents low-voltage DC currents from entering the boat’s electrical system via the ground wire, which helps prevent corrosion.
• To test whether the isolator is working properly, measure the resistance between the ground wires on both sides of the isolator. If resistance is very high, it is functioning correctly.

Inspect the RCD Device:

• Test the RCD by pressing the test button. If it does not trip, the unit may be faulty and should be replaced.
• If the RCD continues to trip unexpectedly, even after troubleshooting, it could indicate an internal ground fault in the boat’s electrical system. In this case, consult a marine electrician immediately.

5. Circuit Overload

Solution:

Identify the Load:

• Use a multimeter or an energy meter to measure the current draw on the circuit.
• Compare this reading with the maximum capacity of the fuse or circuit breaker (typically listed in amperes (A)).

Divide the Circuit:

• If the load exceeds the circuit’s capacity, redistribute devices across multiple circuits.
• Install additional fuse panels or breakers to evenly distribute power and reduce overload risks.

Use the Correct Fuses:

• Ensure that fuses match the appropriate amperage for the circuit they protect.
• Never use a higher-rated fuse than recommended, as this prevents the fuse from breaking the circuit during an overload, increasing the risk of fire or equipment damage.

6. Incorrect Cable Sizing

If cables are not correctly sized, it can lead to overheating and, in the worst case, fire. This happens when the cable's gauge is too small for the amount of current it needs to carry, or when the cable is too long, increasing resistance and heat buildup in the circuit.

Solution:

Calculate the Required Cable Size:

• Use a cable sizing chart to determine the correct cable gauge.
• Consider both current draw (amperes) and cable length, as longer cable runs require a larger cross-sectional area to minimize voltage drop.

Choose Cables with Proper Insulation:

• Use marine-grade cables with insulation resistant to moisture, corrosion, and vibration.
• Ensure the cables are tinned copper, which offers better protection in harsh marine environments.

Inspect Cables for Damage:

• Regularly inspect existing cables for wear, cracks, or overheating marks.
• Immediately replace damaged cables with properly sized alternatives to prevent fire hazards.

Secure Proper Connections:

• Use high-quality cable lugs and heat shrink tubing to create tight, corrosion-resistant connections.
• Ensure all connections are securely crimped to reduce resistance and prevent electrical failures.

Tips on the Go:

7. Missing or Faulty Fuses

Solution:

Inspect All Fuses:

• Check the fuse panel and individual component fuses for any blown or damaged fuses.
• Use a fuse tester or a multimeter to verify if a fuse is intact.
  • Place the red probe on one end of the fuse and the black probe on the other.
  • If the fuse is intact, you should hear a beep or see a reading on the multimeter indicating continuity.

Ensure Proper Fuse Rating:

• Compare the fuse’s amp rating with the maximum current draw of the component (check the user manual).
• Replace incorrectly rated fuses with the correct ones to prevent overload and equipment damage.

Use Marine-Grade Fuses:

• Always use marine-approved fuses, as they are built to withstand vibrations, moisture, and corrosion, which are common in marine environments.

Prevent Future Issues:

• Maintain a logbook of replaced fuses and their ratings to track recurring failures and spot patterns of electrical problems.

Tips on the Go:

8. Incorrect Battery Charging

Solution:

Use a Compatible Charger:

• Ensure your battery charger is suitable for your battery type (AGM, gel, lithium, or lead-acid).
• Choose an intelligent charger that automatically adjusts voltage and current to prevent overcharging.

Install a Battery Monitor:

• A battery monitor provides real-time data on charge level, power consumption, and remaining capacity.
• Regularly check that voltage stays within the recommended range (typically 12.6V – 14.4V for 12V systems).

Avoid Deep Discharges:

• Never let lead-acid batteries drop below 50% capacity, as this reduces lifespan.
• Lithium batteries can handle deeper discharges but should still be used efficiently to prolong life.

Schedule Regular Charging:

• If the battery is not in use for an extended period, such as during winter storage,
  • Charge it periodically or
  • Connect it to a trickle charger to prevent self-discharge.

Tips on the Go:

9. Use of Non-Marine Components

Solution:

Use Only Marine-Grade Components:

• Install marine-approved components with high IP (Ingress Protection) ratings for resistance to water and dust.
• Ensure all materials are corrosion-resistant and specifically rated for marine use.

Use Tinned Copper Wiring:

• Tinned copper wires offer significantly better resistance to corrosion than standard copper wiring.
• Avoid automotive or household cables, as they degrade quickly in a marine environment.

Replace Non-Marine Components:

• If you discover non-marine components installed on your boat, replace them immediately with proper marine-grade alternatives to ensure long-term durability and safety.

10. Incorrect Use of Inverters

Solution:

Calculate Power Demand:

• Add up the wattage of all appliances you plan to connect to the inverter.
• Include a 20-30% safety margin to ensure the inverter is not constantly operating at maximum capacity.

Choose the Right Inverter:

• Ensure the rated (continuous) power and peak power capacity can handle both steady loads and high startup currents from devices like refrigerators or pumps.
• Use a pure sine wave inverter for sensitive electronics to prevent malfunctions or damage.

Install the Inverter Correctly:

• Place it in a dry, well-ventilated location, away from flammable materials, to prevent overheating.
• Use properly sized cables to connect the inverter to the battery. Cables that are too long or too thin can cause voltage drop and overheating.

Prevent Future Issues:

• Ensure your battery capacity is sufficient to support the inverter’s power consumption.
• Keep in mind that an inverter can drain batteries quickly, so monitor battery levels and charge accordingly.

Final Advice

Essential Electrical Toolkit for Your Boat
